Performance Data

• Nominal Diameter: DN50 ~ DN1500
• Pressure Rating: PN16
• Leakage Class: Class V
• Applicable Media: For standard rubber sleeves: mineral slurry, mud, paper pulp, etc.For other optional rubber sleeves: Applicable media vary depending on the sealing packing, and temperature compatibility also differs accordingly.
• Temperature Range:For standard rubber sleeves: ≤ 80°C.For other optional rubber sleeves: Up to 160°C.
• Flow Characteristic: Full-bore, unobstructed flow

Connection and Actuation Methods

• Connection Type: Wafer, Flanged, High-pressure, Lug, Threaded, Welded, Clamp

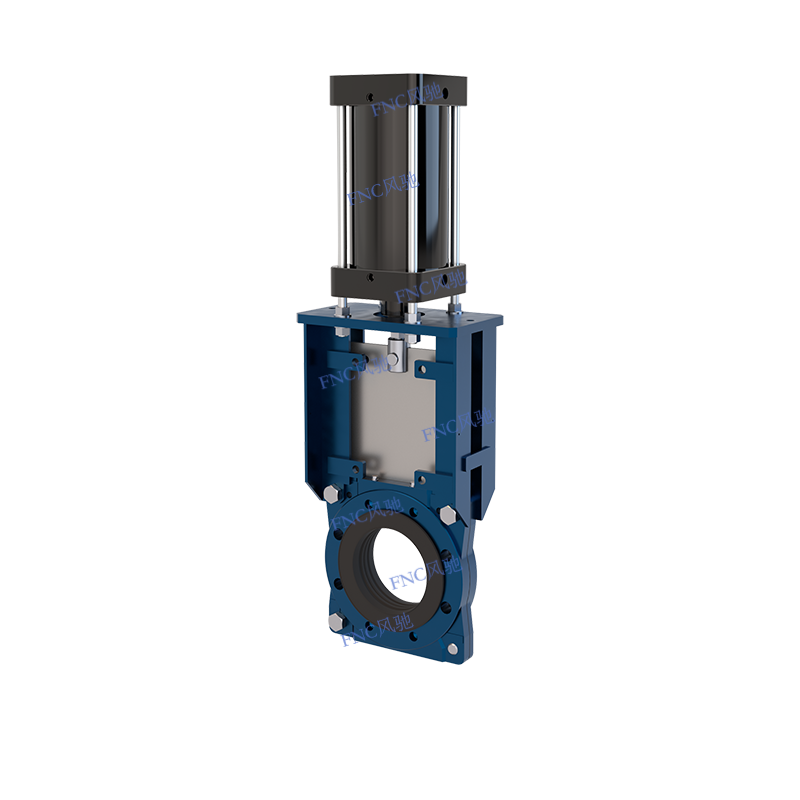

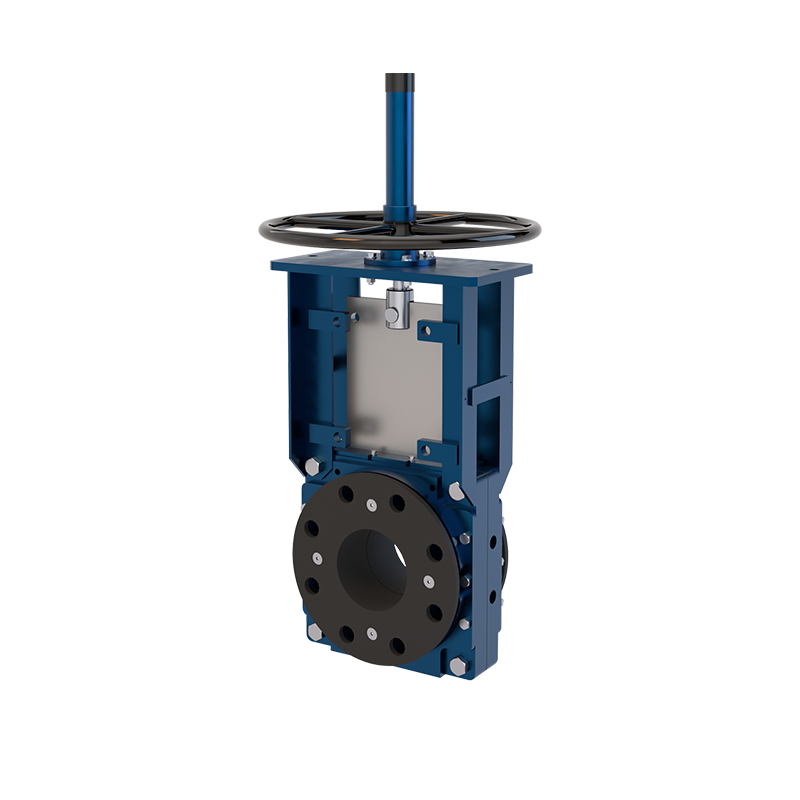

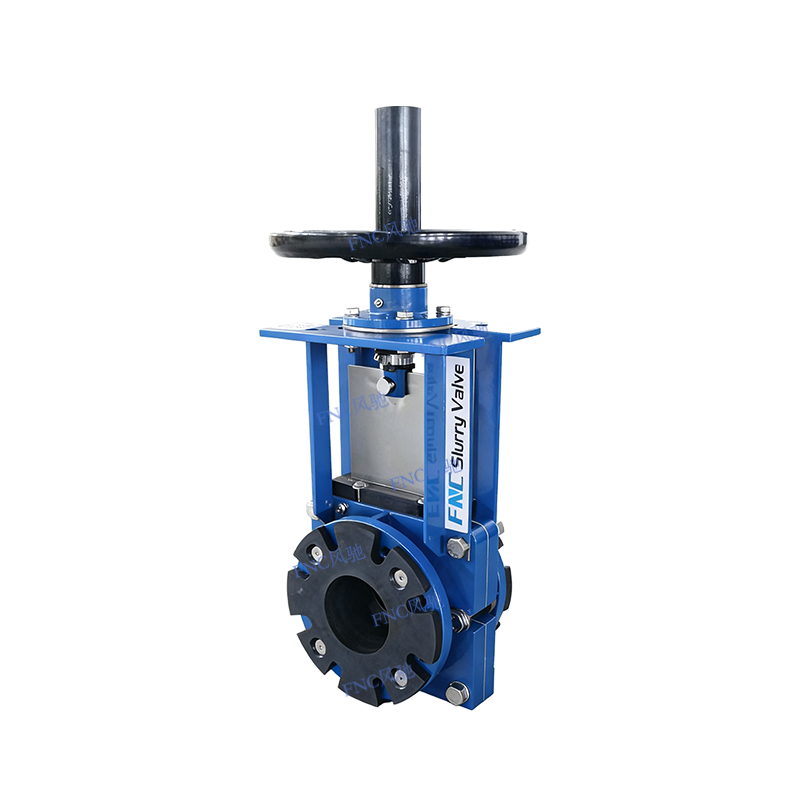

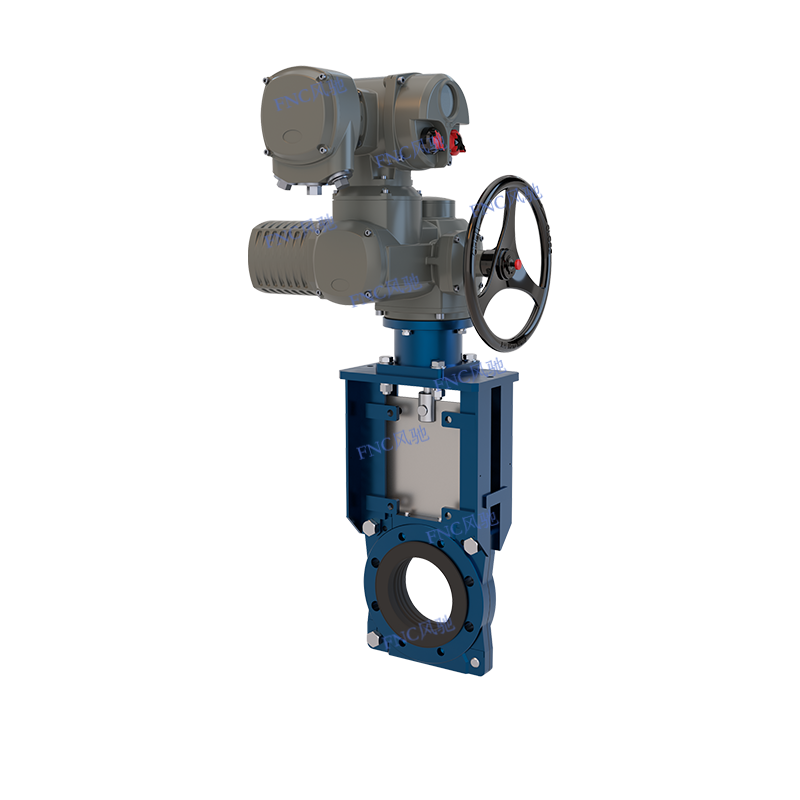

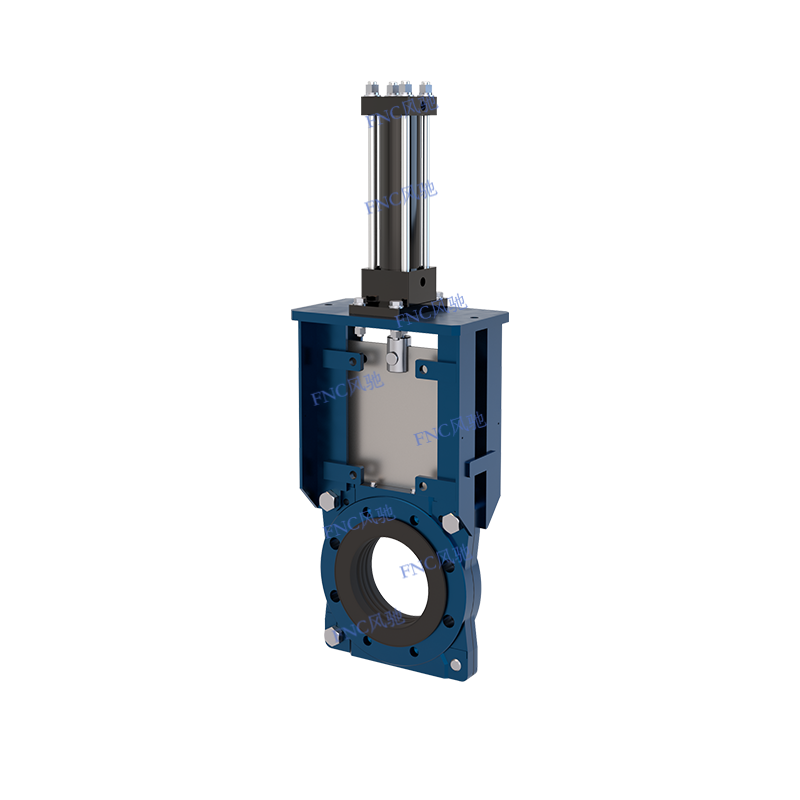

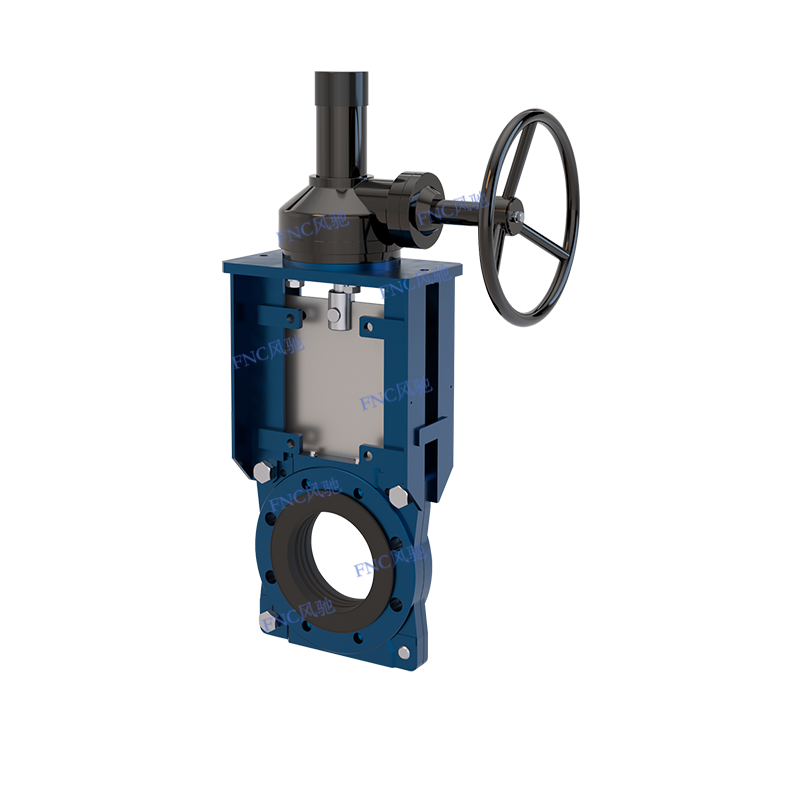

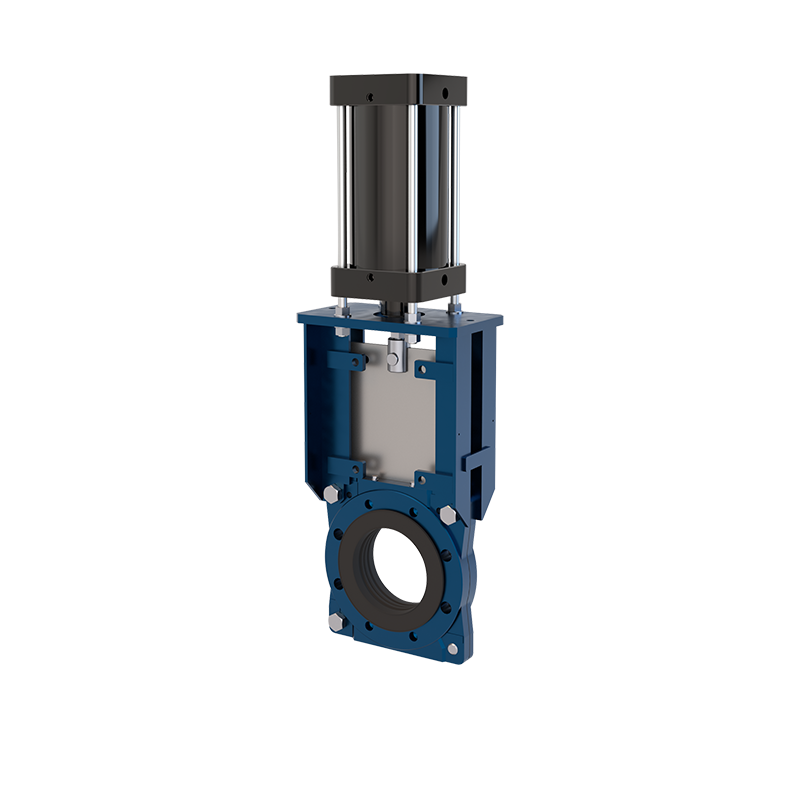

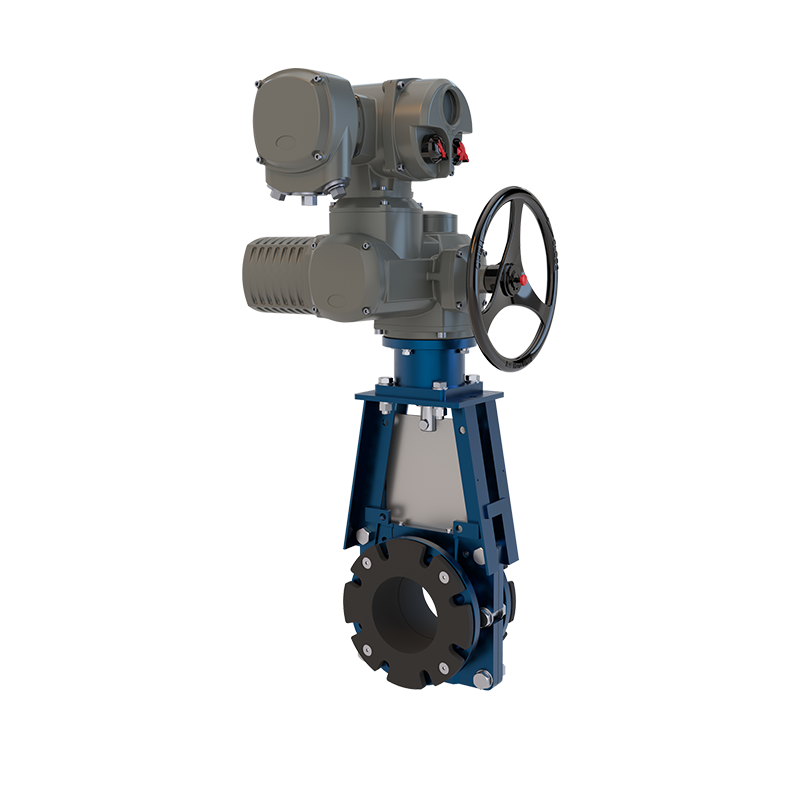

• Actuation Method: Manual(Handwheel/Worm Gear), Pneumatic On-Off Type (Single Acting/Double Acting), Pneumatic Modulating Type, Electric(On-Off Type/Modulating Type/Explosion-Proof), Hydraulic Actuation, Combined Actuation(Manual-Pneumatic/Manual-Electric )

Applicable Scenarios：Mining, phosphorus industry, power plants, steel and other metal industries, pulp and paper industry, chemical plants, alumina industry, cement plants，etc.

Customization is available based on requirements.

Product Features

• 100% bubble-tight sealing ensures absolute zero leakage on the downstream side;
• Double-seat design enables bidirectional flow and shut-off of the valve;
• Unobstructed flow passage eliminates turbulence and reduces pressure loss when fluid passes through the valve;
• No seat cavity, which prevents the accumulation of solid particles and ensures reliable closure of the valve gate;
• A secondary seal with dynamic self-adjustment performance;
• No need for gate or stem packing, eliminating packing leakage and maintenance work;
• Long-lasting and durable lubrication system;
• No metal components in direct contact with the slurry;
• Flexible bracket design: the stem nut can be disassembled from the top and replaced on-site for cylinder actuation or bevel gear actuation without welding;
• Open/close positioning brackets are standard for sizes DN400 and below, and fixed-position pins provided by the factory or prepared by the user can be selected.

Design Features

• The heavy-duty bracket design adopts a top-removable stem nut, facilitating the installation of bevel gears or pneumatic actuators without welding;
• Open/close positioning brackets are standard (for sizes DN400 and below);
• In the open position, the stainless steel gate can be completely withdrawn from the slurry, allowing inspection or replacement of the gate without disassembling the valve;
• 316 stainless steel gate is standard configuration;
• The dynamically self-adjusting secondary seal maintains lubrication;
• On-site replaceable FENGCHI elastic sealing bushing for easy installation;
• Unobstructed flow passage, no metal-to-metal contact, no guide blocks or wedge-shaped grooves;
• Double-sealing bushing design provides "blind plate"-type shut-off when the valve is closed; the sealing bushings fit tightly to isolate medium pressure, eliminating the need for flange gaskets;
• The one-piece valve body flange drilling standard is PN10, with PN16/ANSI B16.5/150 drilling as an option;
• The controllable stroke of the flushing area prevents the gate from inserting too deeply into the sealing bushing in the closed position, reducing the stress on the sealing bushing and the possibility of bushing tearing; all bolts are equipped with lock washers underneath.

Materials

• Valve Body Material: Ductile Iron, SS304, or others
• Bushing Material: NR, EPDM, NBR, etc.
• Valve Stem Material: SS304
• Gate Material: SS304, 316, 2205, 2507
• Fastener Material: SS201, 304, 316
• Secondary Seal Material: EPDM

Customization is available based on requirements.

Slurry Knife Gate Valve Connection Type Selection Table（For Reference Only）

Slurry Knife Gate Valve Actuation Method Selection Table（For Reference Only）
