Air Operated Pinch Valves

Air Operated pinch valves offer a unique and cost-effective solution for fluid control problems. The secret lies in the rubber valve sleeve - the only flow-through part of the pneumatic pinch valve. The driving or clamping action of the valve is accomplished by the pressurized air or liquid acting on the casing. The valve body, as an integrated drive device, eliminates the need for expensive pneumatic/hydraulic/electric actuators. By controlling the air pressure in the annular space between the valve body and the casing, we can open, close or adjust the valve. When the gas source pressure is approximately 2bar higher than the pipeline pressure, the valve can be closed. The elasticity of the casing allows the valve to close with zero leakage when there are residual particles, avoiding damage to the valve. The sealed area is equivalent to 95% of the valve length. There are no valve seats or sealing packing that need to be replaced, and no gaps or dead corners where debris would accumulate and hinder the operation of the valve. The wear resistance of the pinch valve is unparalleled. When the valve is fully open, it is just like a section of pipe in the pipeline. Pinch valves are applied in hard-to-reach locations or harsh environments because they have no external connections, handles, pistons or rotating parts, thus avoiding shutdowns due to malfunctions.

Get A Quote

PREV：No previous article NEXT：No next article

Specifications
Features
Sample
Drawing
Model
Contact Us

Performance Data
- Nominal Diameter: DN15~DN2000，1/2”~84”in
- Pressure Rating: ≤PN10 (varies by diameter, connection type, and actuation method)
- Leakage Class: CLASS V
- Applicable Media: Suitable for various media, including water, oil, slurry, corrosive liquids, etc. (specific applicable media shall refer to the rubber sleeve material)
- Temperature Range: -20℃-120℃ (varies by sealing packing, applicable media and temperature)
- Flow Characteristics: Low flow resistance and excellent flow performance, ensuring efficient media transportation.
- Service Life: Long service life under normal working conditions, especially the durability of the rubber sleeve. With appropriate media and standard operation, it can be used for a long time.
Connection and Actuation Methods
- Connection Types: Flange, Threaded, Clamp, etc.
- Actuation Media: Air, Liquid, etc.
Applicable Scenarios: Mining, Sewage Treatment, Chemical Control Processes, Power Plants

Customization is available based on requirements.
Product Features
- Zero-leakage closure even with residual particles;
- The valve body integrates the function of a built-in actuator;
- No gaps or dead ends hinder valve operation;
- Full-bore, thickened, or tapered sleeve designs;
- Simple structure, unaffected by harsh external environments;
- No seals require replacement or maintenance at any time;
- The rubber sleeve, the "core component" of the pneumatic pinch valve, is the only part in contact with the process medium;
- Replaceable sleeve enables simple maintenance and controllable costs.

Materials

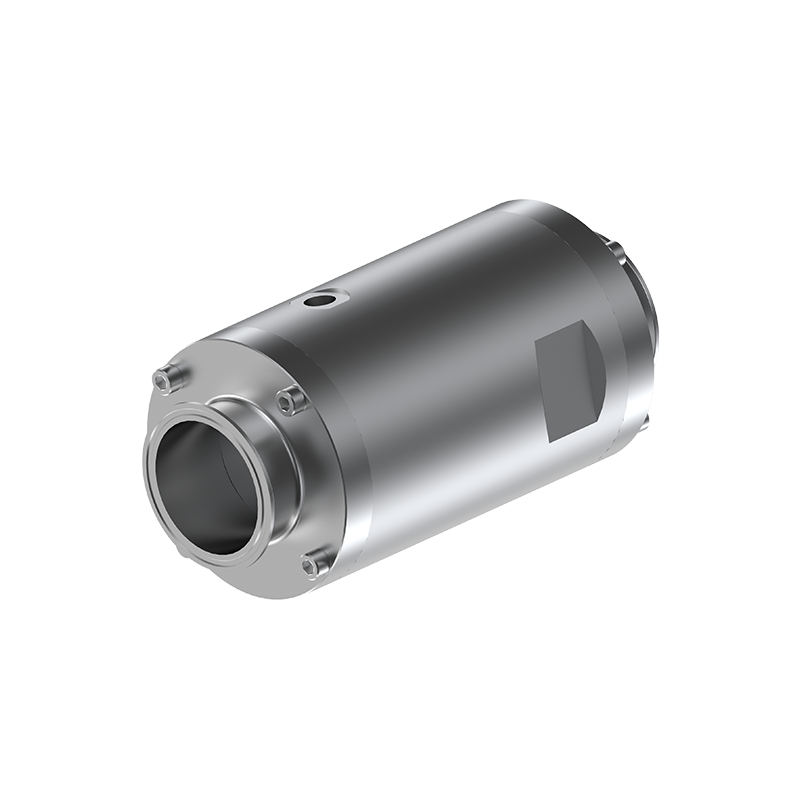

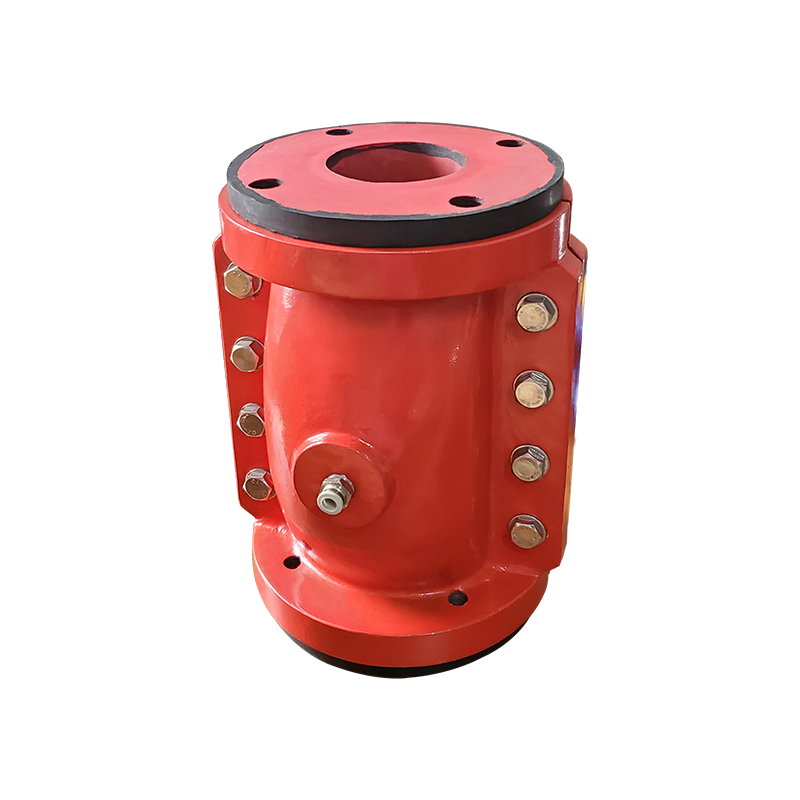

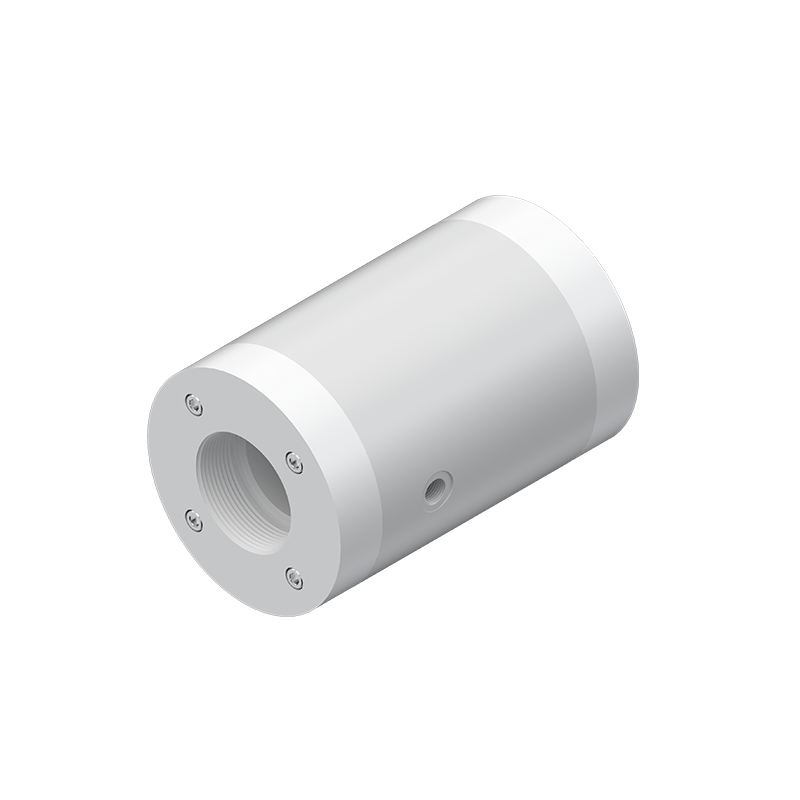

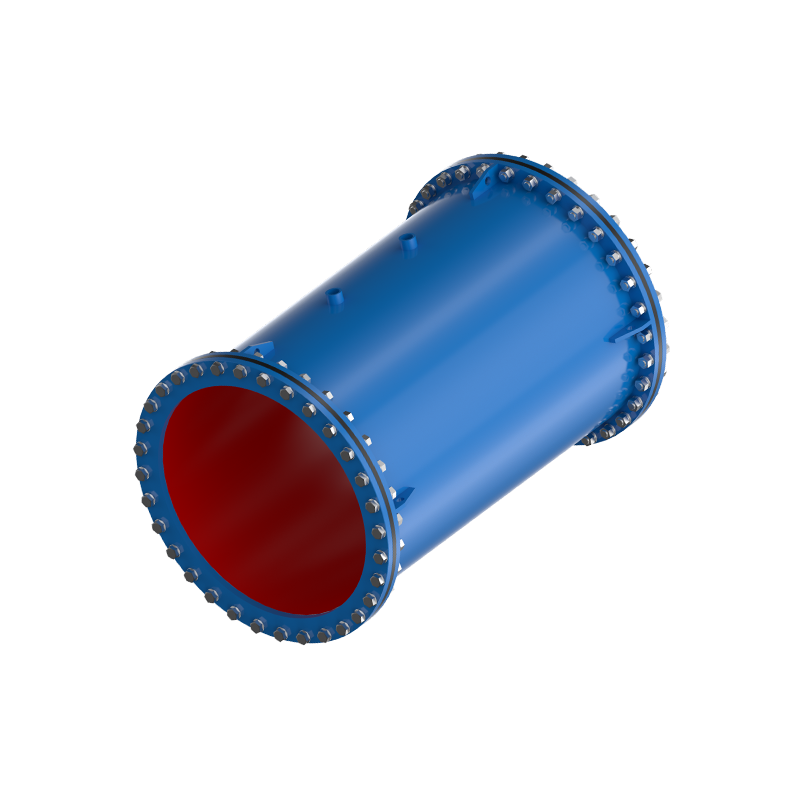

Specification	General line type	Mini type	Large size type	split type
Body material	Cast iron、Cast steel、Aluminum alloy、Stainless steel	Aluminum alloy、Stainless steel POM	45#steel	Cast iron、Cast steel、Stainless steel
Valve sleeve	NR(Natural rubber)、EPDM(Ethylene propylene diene terpolymer)、CR(Chloroprene)、NBR(Nitrile butadiene rubber)、Butyl rubber、FPM、Hypalon rubber
Connection Type	Flange、Thread、Clamp	Flange、Thread、Clamp、End welding	Flange	Flange
Connection Material	Cast steel、Stainless steel、Plastic lining、Rubber lining	Aluminum alloy、Stainless steel POM	Rubber	Rubber

Customization is available based on requirements.
